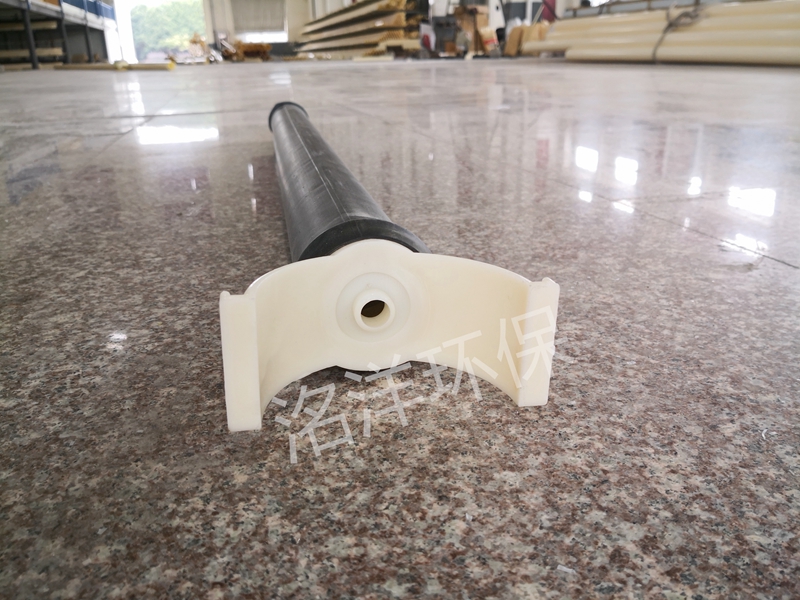

Features
Unique structure with variable connection types;
Perforated air distribution method adopted for more stable system operation;
More convenient maintenance
Performance data
(1) Φ67×500,Φ67×750,Φ67×1000
Specifications | Φ67×500 | Φ67×750 | Φ67×1000 |
Size Φ×Lmm | 67×500 | 67×750 | 67×1000 |
Oxygen transfer efficiency | 1.5m | 14~17% | 14~17% | 14~17% |
3.0m | 15~23% | 15~23% | 15~23% |
5.0m | 23~32% | 23~32% | 23~32% |
6.0m | 34~39.5% | 34~39.5% | 34~39.5% |
7.0m | 31~45% | 31~45% | 31~45% |
Ventilation air flow(m3/h) | 1.7~6.8 | 3.4~13.6 | 3.4~17.0 |
Design ventilation air flow | 4.0 m3/h. | 5.5 m3/h. | 7.5 m3/h. |
Service area | 0.82~1.26 | 0.98~2.11 | 0.98~2.35 |
Quantity of Holes | 8080 | 12300 | 16880 |
Bubble diameter | 0.8~2.0mm | 0.8~2.0mm | 0.8~2.0mm |
Pressure loss | 17~42cm | 17~41.5cm | 17~40cm |
Oxygenation capacity | Fine pore:7.5kgO2/KW・h(under 5m water depth),pore:3.5~4.8kgO2/KW・h(under 5m water depth) |
Stretching ability | >600% |
Tensile strength | >13.8×103kpa |
(2) Φ80×500,Φ80×750,Φ80×1000
Specifications | Φ80×500 | Φ80×750 | Φ80×1000 |
Size Φ×Lmm | 80×500 | 80×750 | 80×1000 |
Oxygen transfer efficiency | 1.5m | 14~17% | 14~17% | 14~17% |
3.0m | 15~23% | 15~23% | 15~23% |
5.0m | 23~32% | 23~32% | 23~32% |
6.0m | 34~39.5% | 34~39.5% | 34~39.5% |
7.0m | 31~45% | 31~45% | 31~45% |
Ventilation air flow(m3/h) | 2.5~8.5 | 4.0~15.8 | 4.0~20.0 |
Design ventilation air flow | 5.0m3/h. | 8.5 m3/h. | 12.0 m3/h. |
Service area | 1.15~2.85 | 1.35~3.65 | 1.76~4.24 |
Quantity of Holes | 8650 | 12500 | 17400 |
Bubble diameter | 0.8~2.0mm | 0.8~2.0mm | 0.8~2.0mm |
Pressure loss | 17~42cm | 17~41.5cm | 17~40cm |
Oxygenation capacity | Fine pore:7.5kgO2/KW・h( under 5m water depth), pore:3.5~4.8kgO2/KW・h(under 5m water depth) |
Stretching ability | >600% |
Tensile strength | >13.8×10³kpa |
(3) Φ91×500,Φ91×750,Φ91×1000
Specifications | Φ91×500 | Φ91×750 | Φ91×1000 |
Size Φ×Lmm | 91×500 | 91×750 | 91×1000 |
Oxygen transfer efficiency | 1.5m | 14~17% | 14~17% | 14~17% |
3.0m | 15~23% | 15~23% | 15~23% |
5.0m | 23~32% | 23~32% | 23~32% |
6.0m | 34~39.5% | 34~39.5% | 34~39.5% |
7.0m | 31~45% | 31~45% | 31~45% |
Ventilation air flow(m3/h) | 6.8~20.4 | 10.2~30.6 | 10.2~30.6 |
Design ventilation air flow | 8.0m3/h. | 12.0 m3/h. | 15.0 m3/h. |
Service area | 1.15~3.85 | 1.75~4.65 | 1.75~5.61 |
Quantity of Holes | 9620 | 15175 | 19400 |
Bubble diameter | 0.8~2.0mm | 0.8~2.0mm | 0.8~2.0mm |
Pressure loss | 17~42cm | 17~41.5cm | 17~45cm |
Oxygenation capacity | Fine pore:7.5kgO2/KW・h(under 5m water depth), pore:3.5~4.8kgO2/KW・h(under 5m water depth) |
Stretching ability | >600% |
Tensile strength | >13.8×10³kpa |
(4) Ø120*500,Ø120*750、Ø120*1000
Specifications | Φ120×500 | Φ120×750 | Φ120×1000 |
Size Φ×Lmm | 120×500 | 120×750 | 120×1000 |
Oxygen transfer efficiency | 1.5m | 14~17% | 14~17% | 14~17% |
3.0m | 15~23% | 15~23% | 15~23% |
5.0m | 23~32% | 23~32% | 23~32% |
6.0m | 34~39.5% | 34~39.5% | 34~39.5% |
7.0m | 31~45% | 31~45% | 31~45% |
Ventilation air flow(m3/h) | 7.5~25.5 | 10.2.6~37.4 | 10.2~42.8 |
Design ventilation air flow | 9.5.0m3/h. | 15.5 m3/h. | 19.5 m3/h. |
Service area | 1.15~4.85 | 1.75~5.25 | 2.15~6.25 |
Quantity of Holes | 14300 | 20400 | 28600 |
Bubble diameter | 0.8~2.0mm | 0.8~2.0mm | 0.8~2.0mm |
Pressure loss | 17~42cm | 17~41.5cm | 17~45cm |
Oxygenation capacity | Fine pore:7.5kgO2/KW・h(under 5m water depth), pore:3.5~4.8kgO2/KW・h(under 5m water depth) |
Stretching ability | >600% |
Tensile strength | >13.8×10³kpa |
