PERFORMANCE DATA
Specifications | QMZM200 | QMZM260 | QMZM300 |
Working ventilation air flow | 1.5-3 m3/h. per pcs | 2-5 m3/h. per pcs | 2-8m3/h. per pcs |
Design ventilation air flow | 1.8 m3/h. | 3.0 m3/h. | 4.2 m3/h. |
Service area | 0.3-0.65m3/h. per pcs | 0.4-0.8m3/h. per pcs | 0.5-1.0m3/h.per pcs |
Oxygen utilization rate | 22-40% | 22-40% | 22-40% |
Oxygenation capacity | 0.13-0.4kgO2/h | 0.21-0.4kgO2/h | 0.21-0.53kgO2/h |
Submergence depth | 4-8m | 4-8m | 4-8m |
DIAPHRAGM MATERIALS：EPDM, silastic，NBR，TP

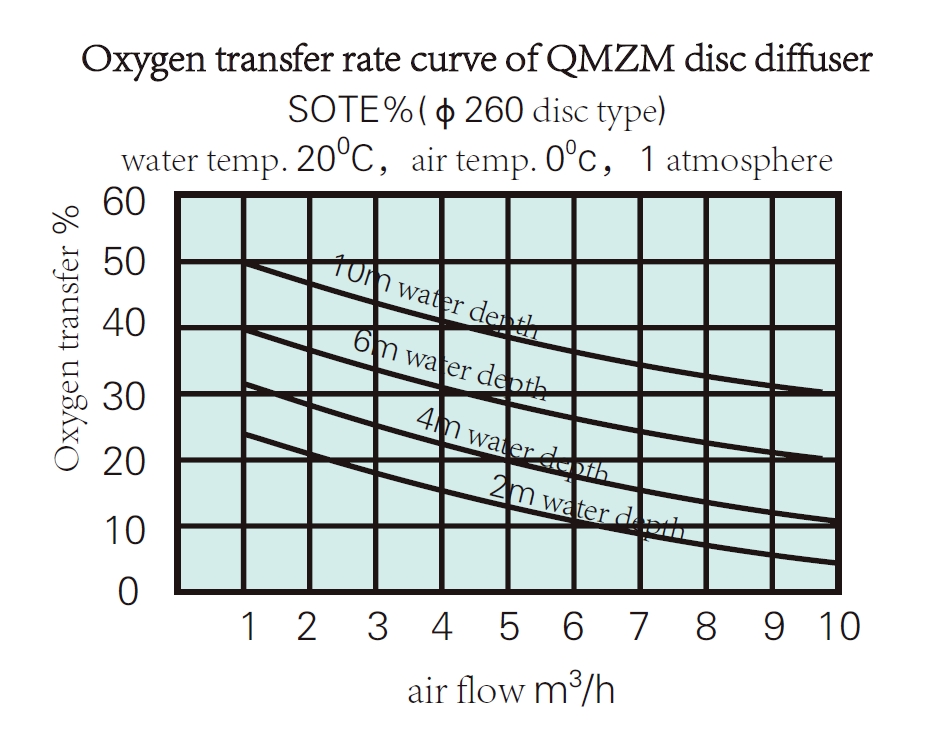

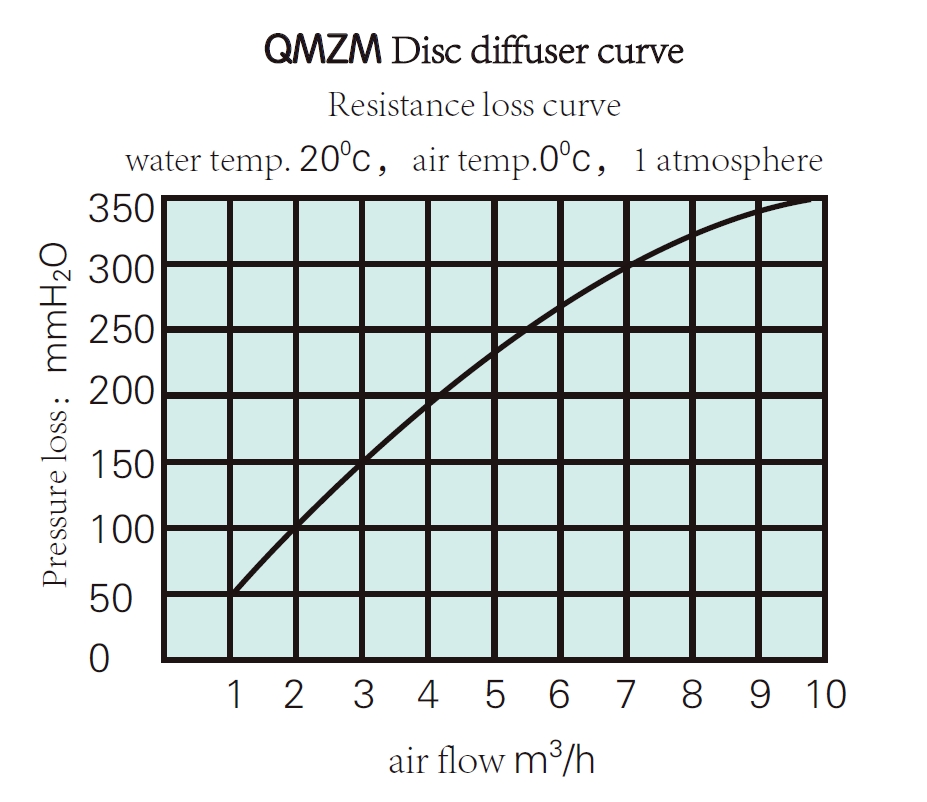

PERFORMANCE CURVE
