Application
The mixer is suitable for mixing liquids containing suspended solids in sewage treatment and industrial processes.
Main material: stainless steel
Features
Compact structure, simple operation and maintenance, convenient installation and maintenance, long service life

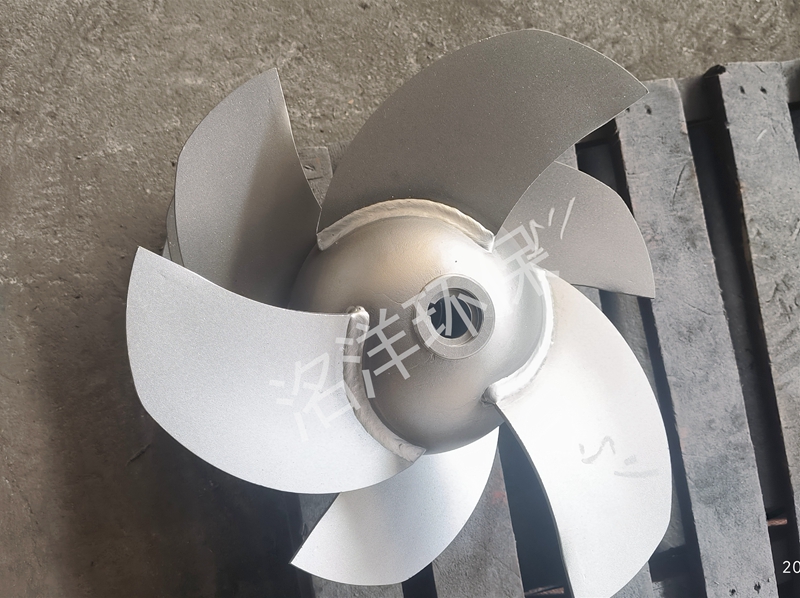

The swept back blade has self-cleaning function, which can avoid entanglement and blockage
Motor insulation grade: F, protection class: IP68. High quality bearings and motor anti condensation devices adopted for ensuring safe operation
Two mechanical seals
Stainless steel material, corrosion-resistant
Main technical parameters
Model | Power | Current | Impeller dia. | Impeller speed | Thrust | Weight | Installation system |
KW | A | mm | r/min | N | kg |
QJB0.37/6-200/3-980S | 0.37 | 1.5 | 200 | 980 | 80 | 36 | Ⅰ/Ⅱ |
QJB0.55/6-200/3-980S | 0.55 | 1.6 | 200 | 980 | 120 | 36 | Ⅰ/Ⅱ |
QJB1.5/8-400/3-740S | 1.5 | 4.5 | 400 | 740 | 600 | 65 | Ⅱ |
QJB2.5/8-400/3-740S | 2.5 | 7.2 | 400 | 740 | 800 | 70 | Ⅱ |
Q]B3/8-400/3-740S | 3 | 9 | 400 | 740 | 800 | 75 | Ⅱ |
QJB4/6-400/3-980S | 4 | 12 | 400 | 980 | 1200 | 73 | Ⅱ |
QJB4/12-620/3-480S | 4 | 12.6 | 620 | 480 | 1400 | 184 | Ⅲ |
QJB5.5/12-620/3-480S | 5 | 16.8 | 620 | 480 | 1800 | 184 | Ⅲ |
QJB7.5/12-620/3-480S | 7.5 | 21.9 | 620 | 480 | 2600 | 229 | Ⅲ |
QJB11/12-620/3-480S | 10 | 29.9 | 620 | 480 | 3300 | 229 | Ⅲ |
QJB15/12-620/3-480S | 15 | 36.9 | 620 | 480 | 4500 | 280 | Ⅲ |
QJB18.5/12-620/3-480S | 18.5 | 48.2 | 620 | 480 | 5000 | 310 | Ⅲ |
Q]B22/12-620/3-480S | 22 | 52.3 | 620 | 480 | 6500 | 350 | Ⅲ |
