TECHNICAL FEATURE

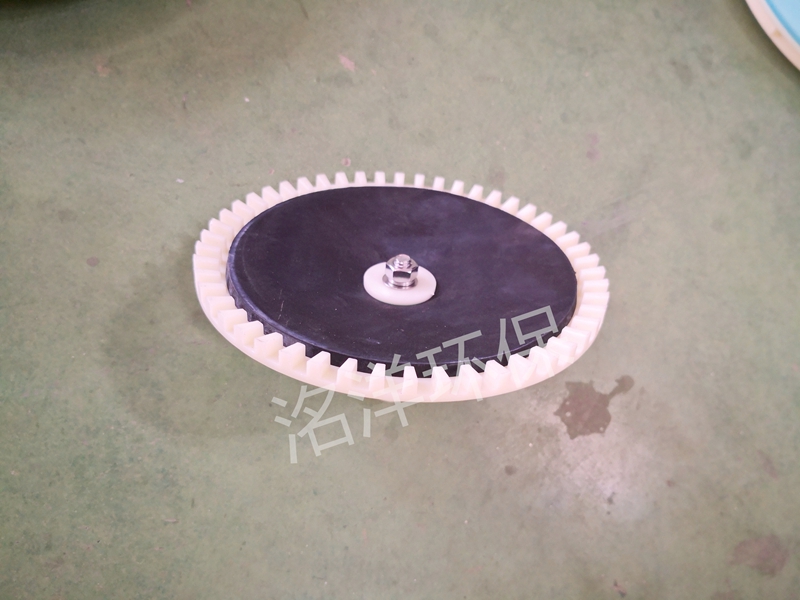

The QMZM disc stirring diffuser is designed to be an umbrella-type toothed air splitter. The By adopting ABS engineering plastic-made main body and a double layer rubber non-return device, there’s no sewage entering into the gas pipeline so that avoid blockage of the air pipeline.
PERFORMANCE DATA
Description | Disc stirring diffuser | Materials | main body | ABS |
Model | QMZM170 | disc | EPDM |
Air flow | minimum 50L/min | Service area | 0.5-0.8M2/pcs |
standard 80-150L/min | Resistance | 150mmAq |
maximum 200L/min | Application water depth | 2.5m and above |
Size | φ170×76H | Oxygen transfer efficiency | 8% |

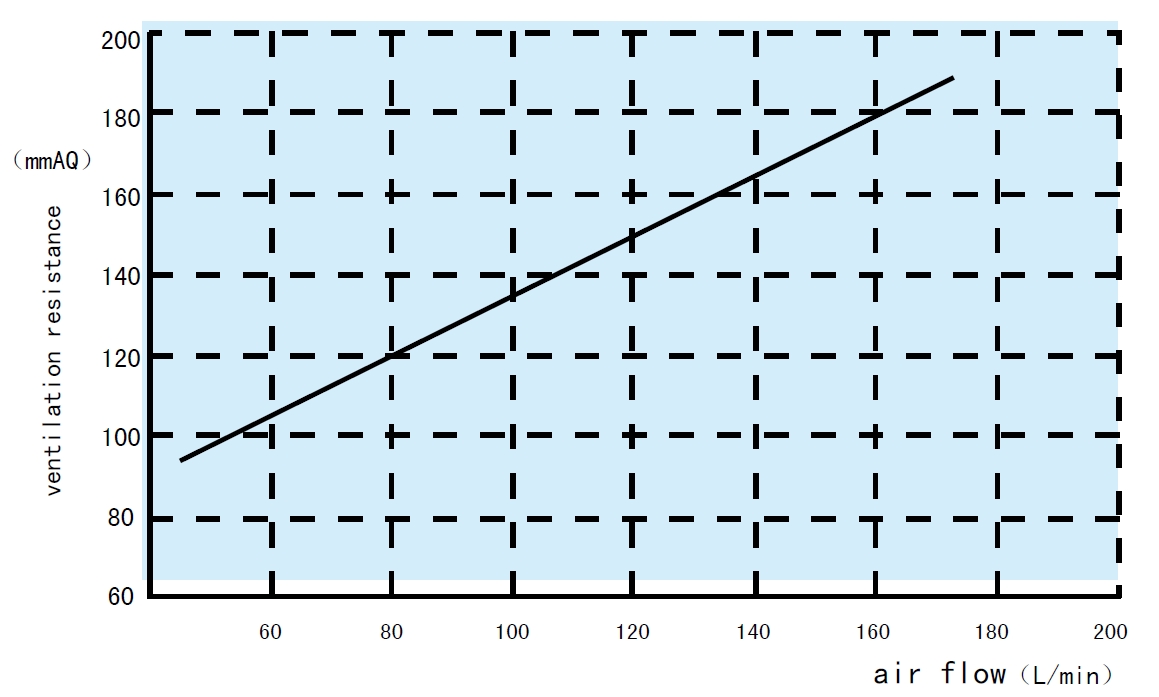

PERFORMANCE CURVE
