Parameter
Model | Voltage | Power | Rated pressure | Rated flow | Maximum pressure | Maximum flow | Noise |
DC-150 | 220-240V/50HZ | 110W | 20Kpa | 9m3/h | 30Kpa | 21m3/h | <40dB(A) |
DC-200 | 220-240V/50HZ | 150W | 20Kpa | 12m3/h | 30Kpa | 23m3/h | <41dB(A) |
DC-250 | 220-240V/50HZ | 230W | 20Kpa | 15m3/h | 30Kpa | 25m3/h | <42dB(A) |
DC-300 | 220-240V/50HZ | 230W | 20Kpa | 18m3/h | 30Kpa | 42m3/h | <45dB(A) |
DC-400 | 220-240V/50HZ | 300W | 20Kpa | 24m3/h | 30Kpa | 46m3/h | <45dB(A) |
DC-500 | 220-240V/50HZ | 460W | 20Kpa | 30m3/h | 30Kpa | 50m3/h | <45dB(A) |

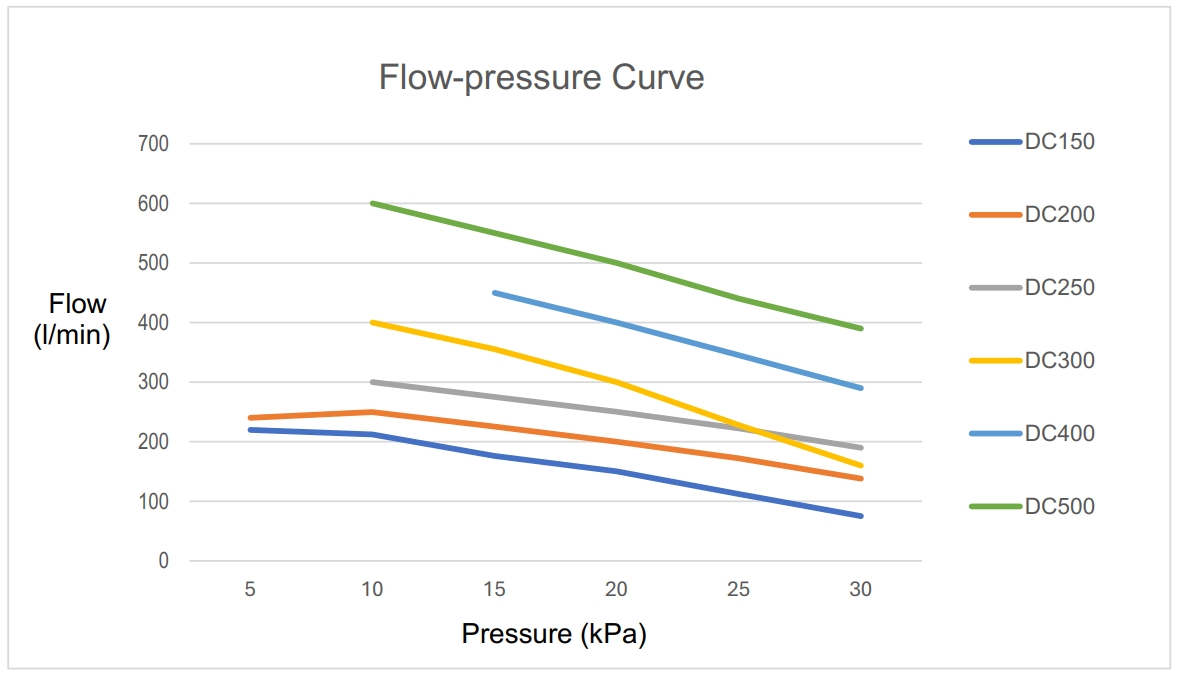

Flow-pressure Curve
Working Principle
When AC power is connected, a magnetic field is created between two opposing electromagnetic coils. The magnet joint drives the rubber bowl to swing back and forth continuously under the action of magnetic field. During the swing process, the space between the rubber bowl and the air chamber is constantly changing. Through the opening and closing of the inlet and outlet valve sheets, the air flow is continuously ejected.
Product features
The principle of a reciprocating motor is adopted to directly drive the diaphragm to reciprocate to generate compressed air, so that the energy consumption is low and the efficiency is high.
The air pump does not need to be filled with oil, the discharged air source is pollution-free.
Compact structure, novel design, high-quality thickened aluminum alloy pump body, floating shock absorption system and multi-stage noise elimination design to minimize the noise and vibration.
The specific power of electromagnetic air pump is about 1/ 5 of that of traditional air compressor, which has obvious energy saving effect.
Application condition
Applicable medium:air
Applicable ambient:0℃~+35℃,altitude <1000m
DC-150
DC-200
DC-250
DC-300
DC-400
DC-500
